COMPOSITE HOSES

Compliance

EN Standard, IMO Standard, ISO Standard, PED Regulation

Approval

DNV GL, LR, ABS, Bureau Veritas, ClassNK, KR, RS

Usage

Transfer of Hydrocarbons, Petrochemicals, Chemicals, Cryogenic Gases & Liquids, etc.

Application

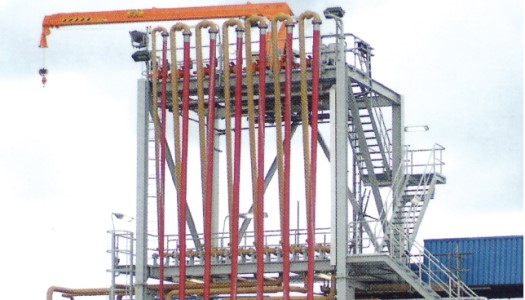

Tank Truck, Railcar, Ship to Shore or Ship to Ship Loading & Unloading, In-Plant Transfer, Fire Safe, High Temperature, etc.

Nominal Bore

1” to 16” NB

Operating Pressure

Vacuum to +25 Bar

Operating Temperature

Minimum -196 Deg C, up to +150 Deg C

Construction

  • Inner Wire : Galvanised Steel, Polypropylene Coated Steel, Stainless Steel 304, Stainless Steel 316
  • Fabric/Film Lining : Polypropylene, Polyamide, BOPP, ECTFE, PTFE, FEP, Polyester
  • Outer Wire : Galvanised Steel, Polypropylene Coated Steel, Stainless Steel 304, Stainless Steel 316
  • Outer Cover : Polyester Coated PVC, Polypropylene, Polyamide, ECTFE

End Fitting Type

Fixed & Floating Flanges, Male Threaded Nipples, Female Threaded Swivel Nuts
