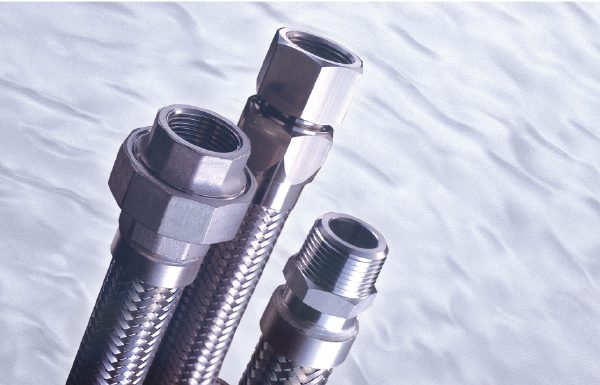

METALLIC BRAIDED HOSES

Compliance

ISO Standard, PED Regulation, BS Standard

Approval

ASTM A-240, ASTB B-127, ASTM B-575

Usage

Transfer of Steam, Chemicals, Foods, Gases, Hydrocarbons, Cryogenic Gases & Liquids. etc.

Application

Chemical Processing, Steel Mill, Petrochemical, Paper & Pulp, HVAC, Power Generation, Pump Connectors, Mining, Exhaust, Cryogenics & Refrigeration, Air Compressors, Food Processing, oil & Gas, etc.

Nominal Bore

1/4” to 14” NB

Operating Pressure

Vacuum to +303 Bar

Operating Temperature

Minimum -196 Deg C, up to +982 Deg C

Construction

  • Tube : Annular / Helical Stainless Steel 304, Stainless Steel 321, Stainless Steel 316 / 316L, MonelTM, InconelTM, HastelloyTM, Bronze
  • Braiding : Stainless Steel 304 / 304L, Stainless Steel 316 / 316L

End Fitting Type

Fixed & Floating Flanges, Male Threaded Nipples, Female Threaded Swivel Nuts, Female Unions, Flared Tube Fittings, Camlock Couplings, Dry Disconnect Couplings, Quick Disconnect Couplings, etc.

Feature

Heat, Pressure-Induced Expansion & Defection Absorption, Handle Vibration, Compensate Misalignment, Allow Axial & Lateral Displacement
